fire damper blade

V locking blade

Curtain Blade

fire damper frame

One piece Frame

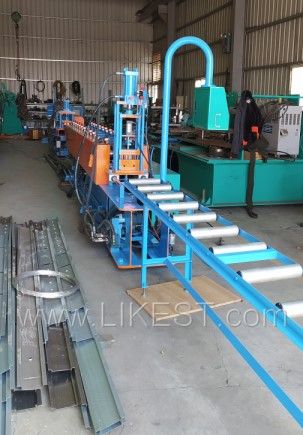

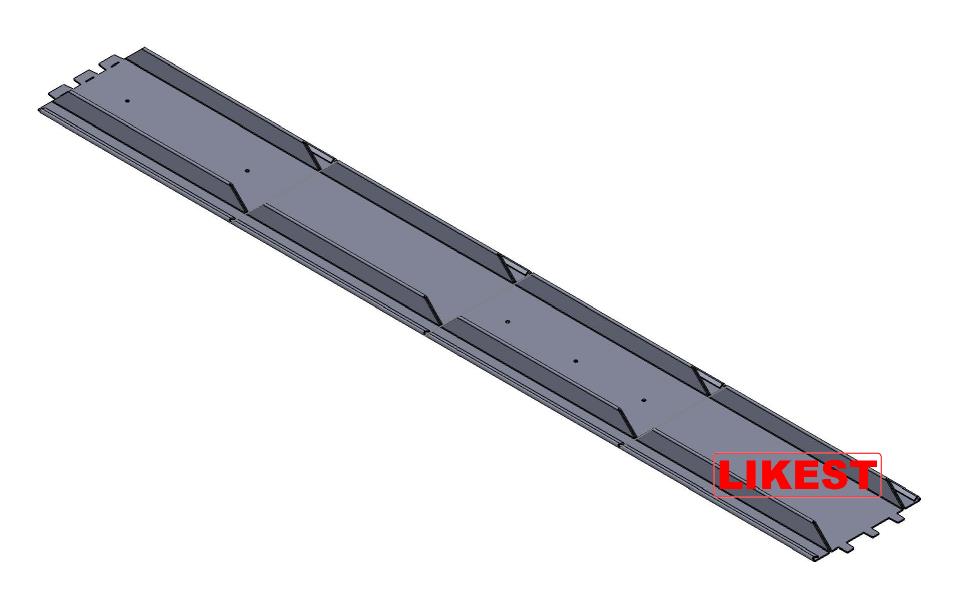

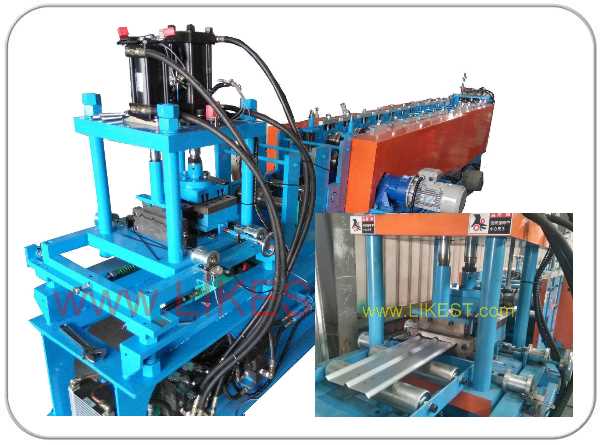

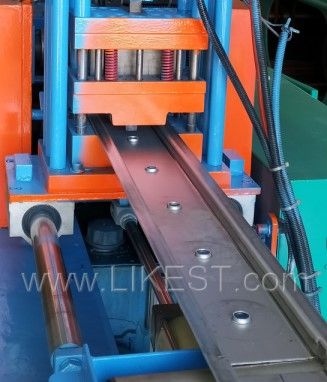

V locking blade roll forming machine

feature:

  • One machine can make two width and two thickness sheet with punching.

  • Plate thickness : 1.2-1.5 MM

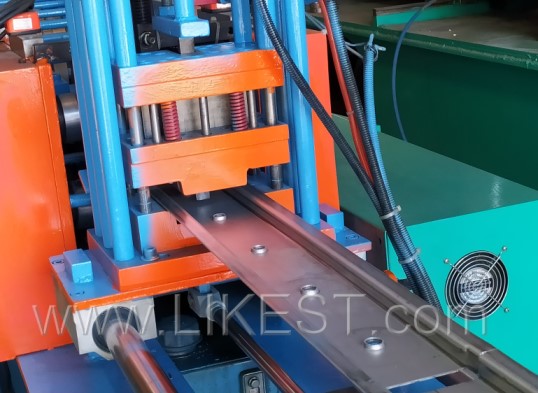

  • Incorporate holes on both sides of the blades just before cutting to the required length

  • Raw material : Galvanized steel

  • Producing process : coil →Roll forming →Punching → Automatic hydraulic cut-off after forming → Finished products.

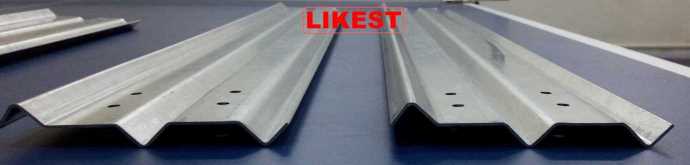

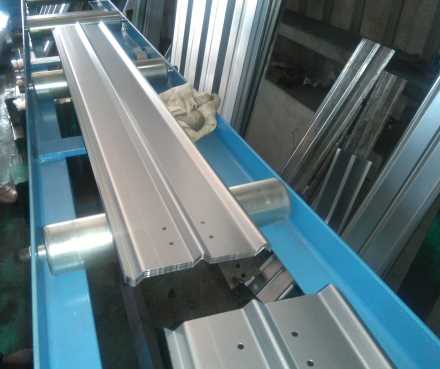

finished sample:



( for the Volume Control Dampers)

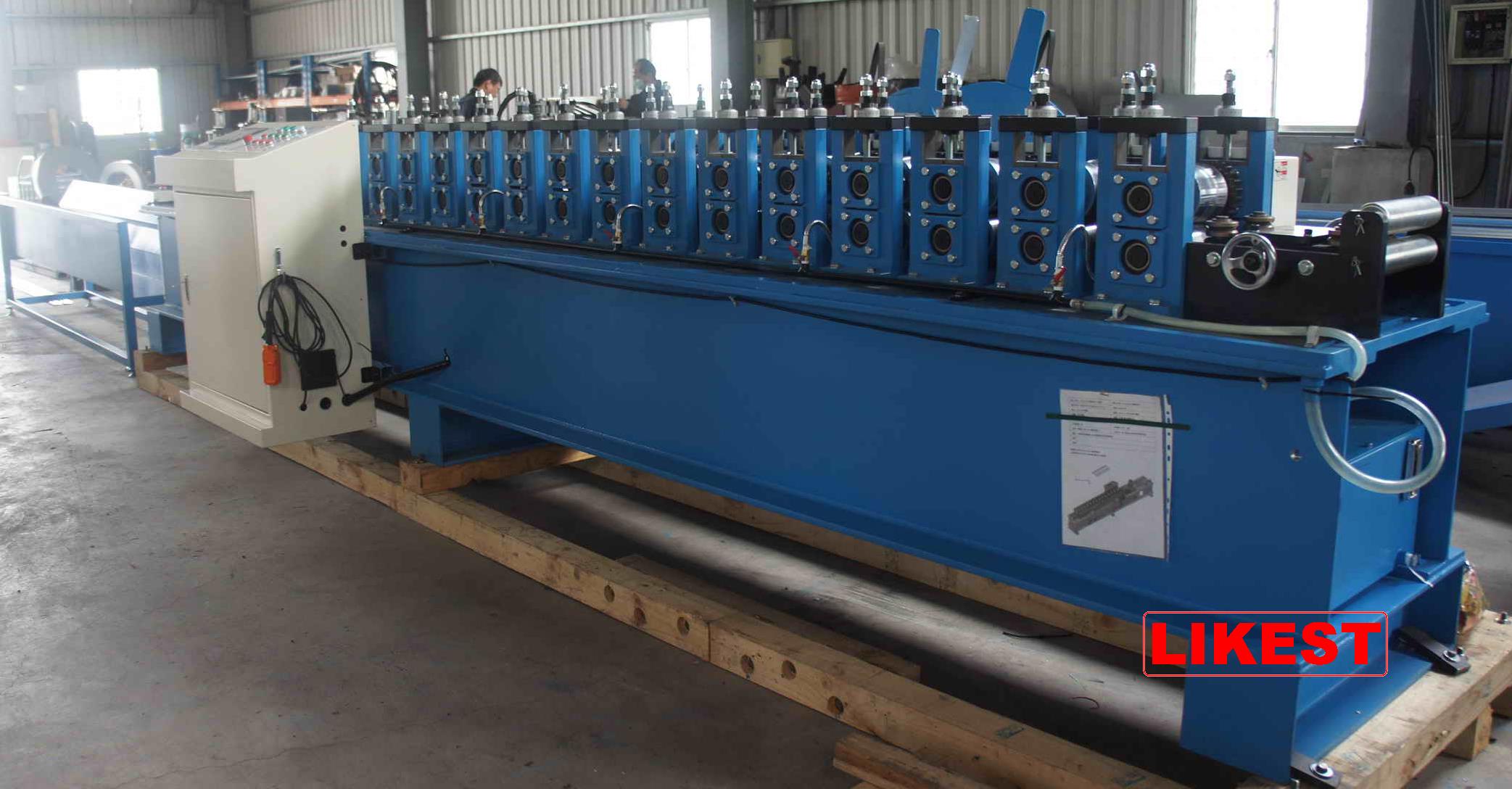

curtain fire damper blade roll forming machine

Forming speed:18 M/minute.

Forming thickness :1.0 mm. G.I.

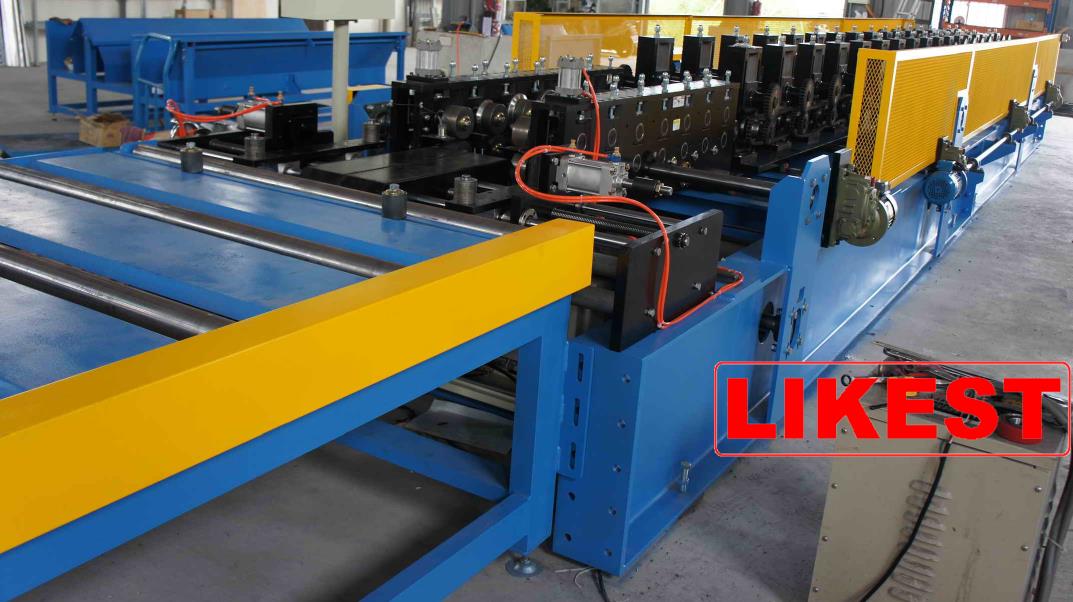

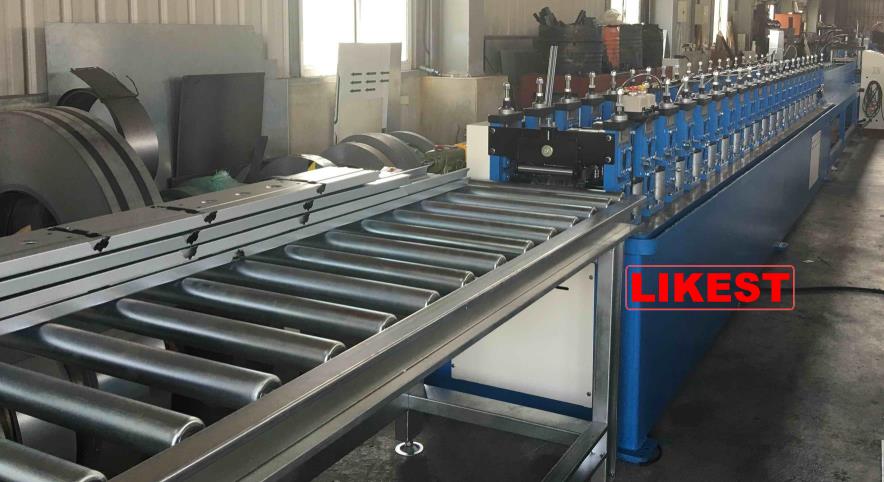

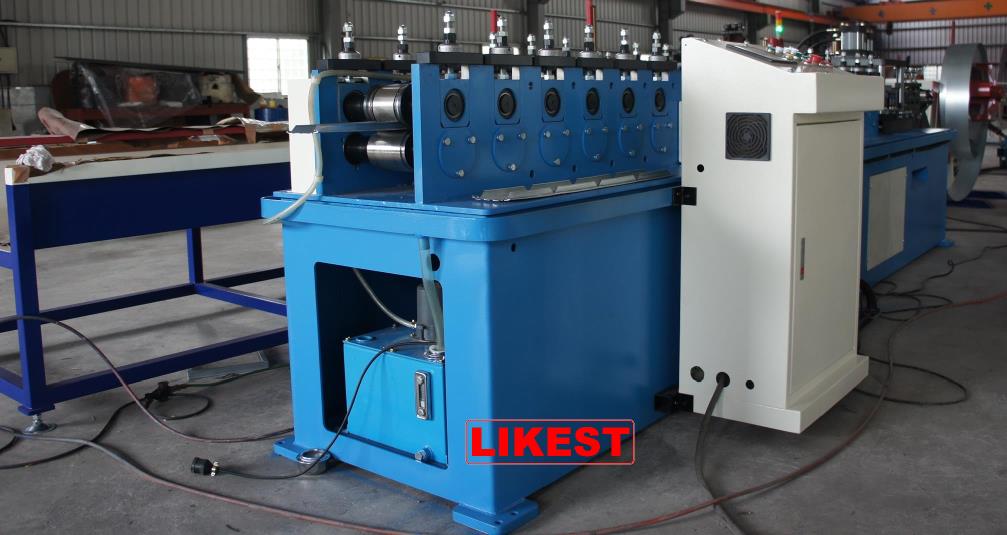

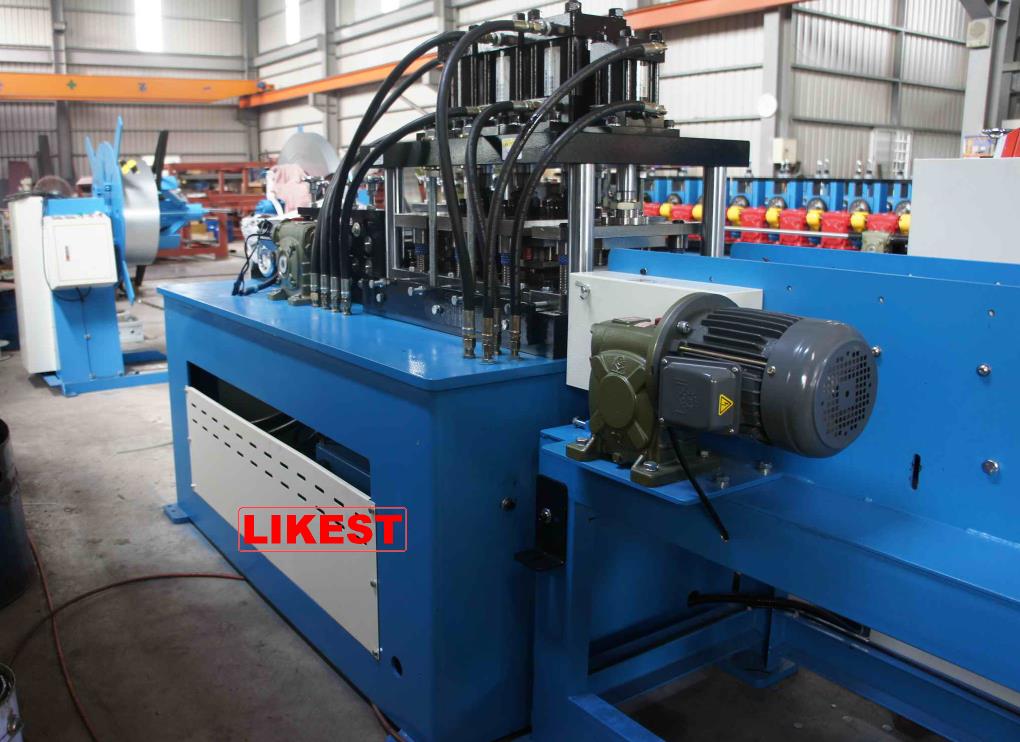

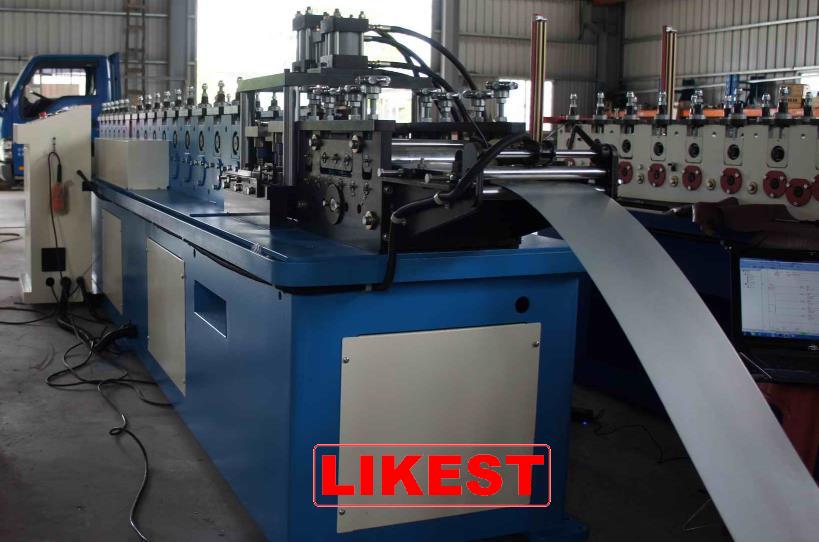

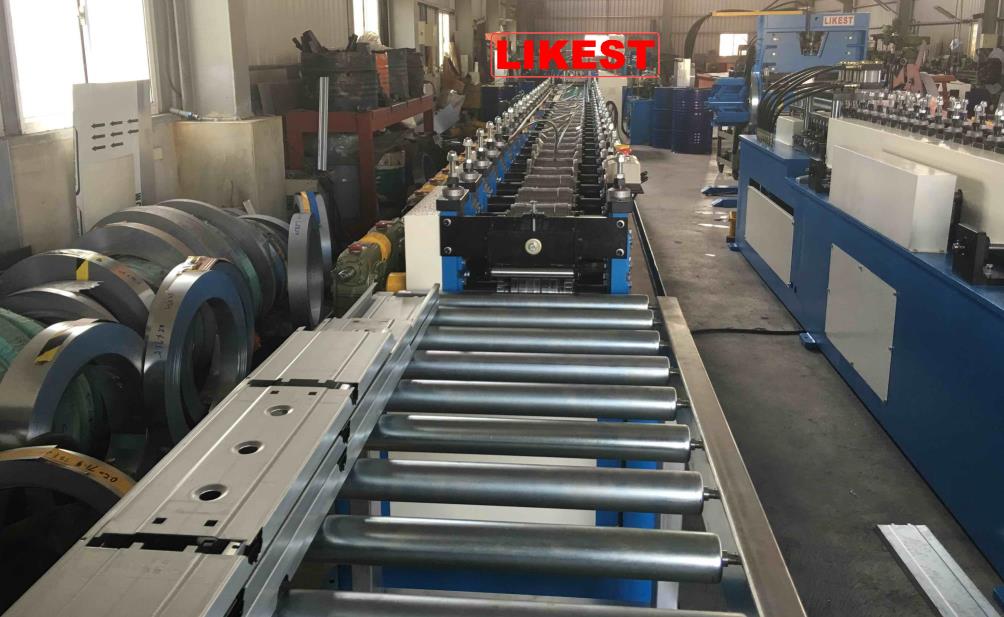

fire damper frame roll forming machine

feature:

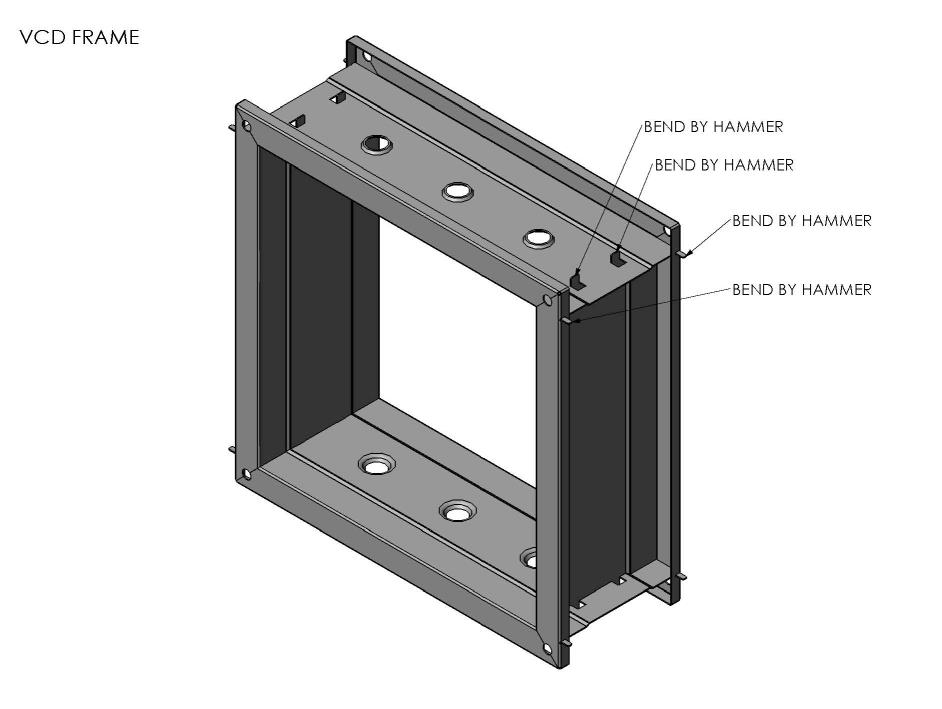

  • Damper Forming machine (Frame) is used for fire dampers, volume control dampers.

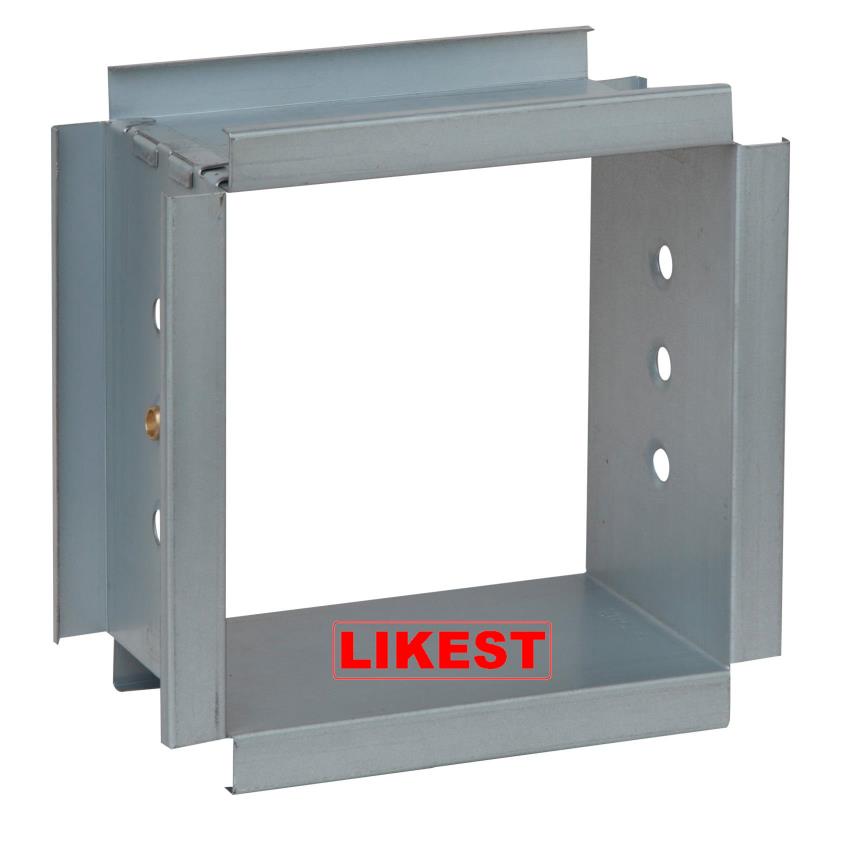

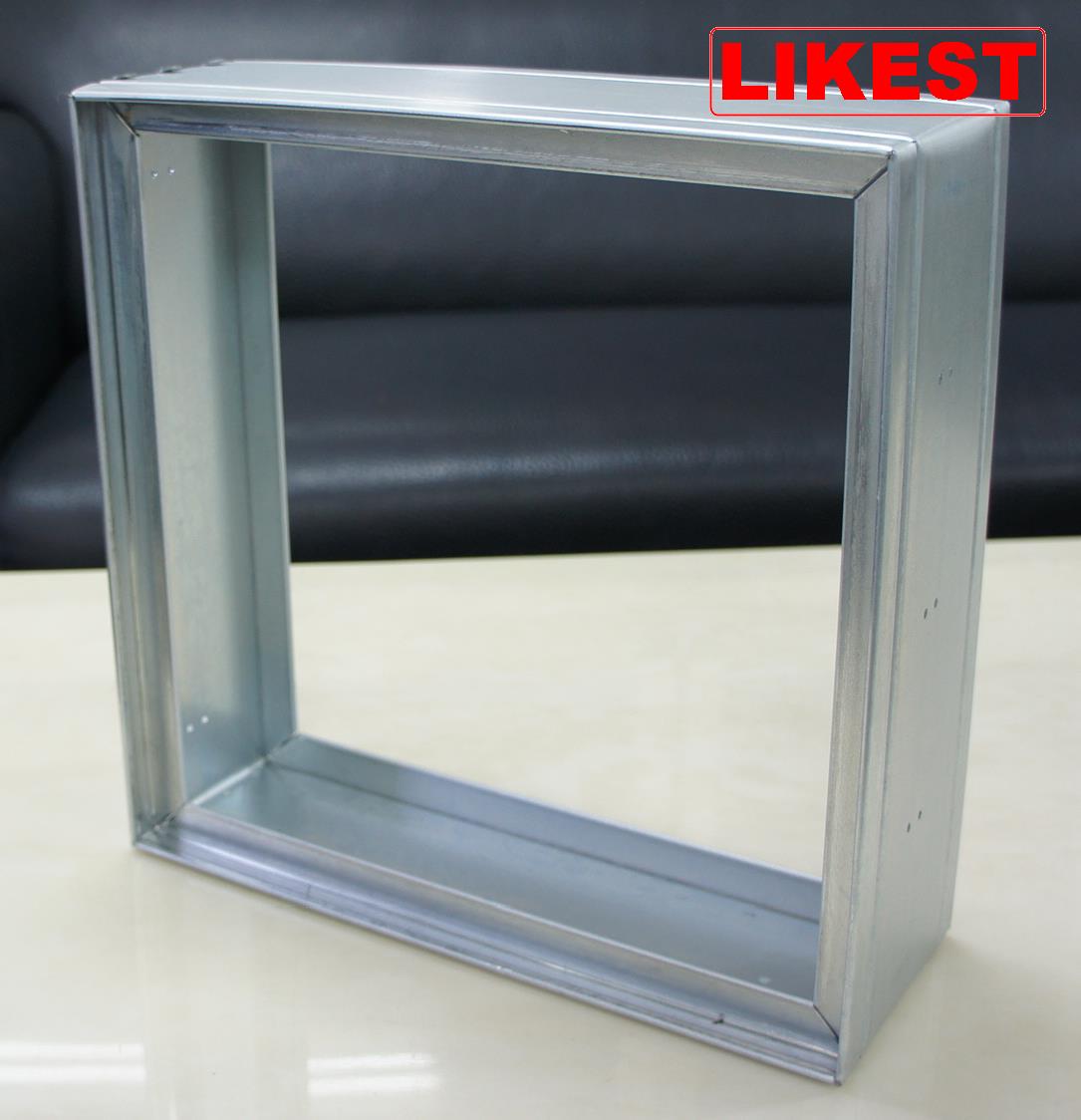

  • One piece Fire Damper Frame

  • width adjustable

  • Suitable material: GI: 0.8~1.0 mm SS: 0.8 mm

  • MIN. SIZE OF FRAME: 200MM*200MM
    MAX. SIZE OF FRAME:1200MM*1200MM

  • Producing process: un-coiler (material feeding)→ feeding→notching→punching →shearing→conveyor →forming→run out rack

feature:

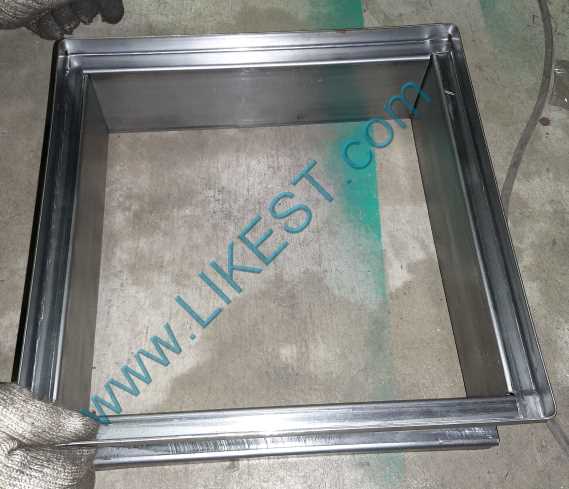

  • One piece Fire Damper Frame

  • width adjustable (2 in 1)

  • Suitable material: GI 1.6 mm (thickness)

  • Producing process: un-coiler (material feeding)→ feeding→notching A→notching B→punching→shearing→conyver→forming→run out rack

  • Feeding speed: 12 M/min.
