Wood pallet assembly machine

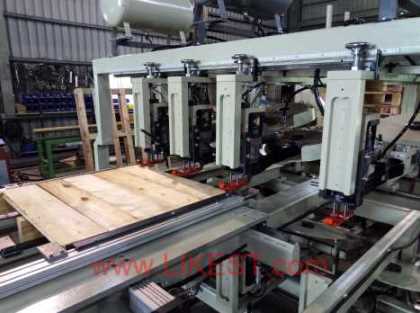

Fully Automated Pallet Nailing Machine

Pallet Assembly

Wood pallet nailing machine

Pallet assembly machine

Automatic wood pallet production line

Wood pallet making machine

Wooden pallet nailing machine

Timber pallet assembly machine

Pallet Making Machine for Stringer Pallets



The advantage of using hydraulic nailing machine:
This nailing machine, equipped with tweezers with single pneumatic locking system and 2 or 3 nail distributors, has been designed to individually and simultaneously nail 45 loose nails. The boxes allow the operator to use any type of nail with a measure ranging between 30mm and 90mm. Adjustment of the nailing process and of the operating cycleˇ¦s speed are automatically controlled by PLC through a touch-screen control panel with which the operator automatically manages the number and combination of nailing operations to perform, when different types of nails are used simultaneously, and the time of the operating cycle, in standby and at work. The counterbalancing nailing bar, which can automatically level itself on the product before it is nailed, guarantees the barˇ¦s millimetric precision.

The technology for keeping the oil in the hydraulic circuit costant
The nailing system has a heat exchanger to keep the temperature of the oil in the hydraulic circuit constant. Lubrication is automatic and timed for a preset operating period, and is adjustable from 0 to 12 months. The number of tweezers with single pneumatic locking system and the number of boxes to feed the nail out is customizable. The nailing machine also features all the protections and safety systems required by the applicable European Directives as standard feature.
