ROOFING roll forming machine

Roof

tile

Double Layers

¡@

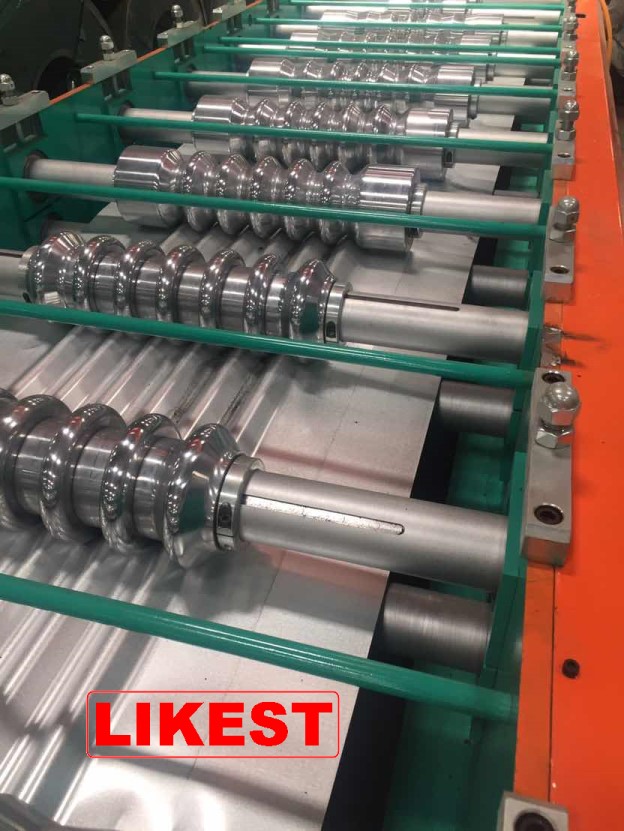

Full Automatic Roofing Corrugated sheet / Trimdek Roofing Roll forming Machine



Specifications:

²  MATERIAL THICKNESS  :  0.3 ¡ã 0.8 mm

²  MATERIAL WIDTH  :  1220 mm ¡ã 1250 mm

²  FINISHED PRODUCT WIDTH  :  1000 mm¡ã1050 mm

Forming process:

Decoiler  è  Roll forming  è  Cut to length  è   Run out rack

composition of production line

A. HYDRAULIC SINGLE HEAD TYPE UNCOILER¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K.¡K 1 set

B. ROLL FORMING MACHINE¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K1 set

C. HYDRAULIC AUTOMATIC CUTTING MACHINE¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K 1 set

D. SPECIAL DESIGN HYDRAULIC SYSTEM FOR MAIN MACHINE¡K..¡K1 set

E. ELECTRICAL CONTROL PANEL for ROLL FORMING MACHINE¡K.. 1 set

F. RUN OUT RACK¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K. 1 set

Feature:

We can according to user requirements, design and manufacture all kinds of the Corrugated Sheet Roll Former for ROOFING PROFILES: Corrugated Roofing, Trimdek, Kliplok, Spandek.

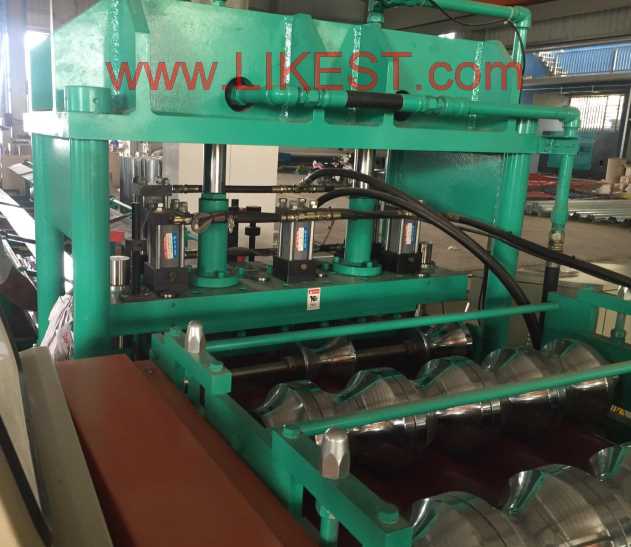

Roofing Tile Roll Forming Machine

Forming Process:

Decoiler  è  Roll forming  è  Press   è  Cut to length  è   Run out rack

composition of production line

A. HYDRAULIC SINGLE HEAD TYPE UNCOILER¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K.¡K 1 set

B. ROLL FORMING MACHINE¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K1 set

C. HYDRAULIC PRESSING SYSTEM¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K 1 set

D. HYDRAULIC AUTOMATIC CUTTING MACHINE¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K 1 set

E. SPECIAL DESIGN HYDRAULIC SYSTEM FOR MAIN MACHINE¡K..¡K1 set

F. ELECTRICAL CONTROL PANEL for ROLL FORMING MACHINE¡K.. 1 set

G. RUN OUT RACK¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K. 1 set

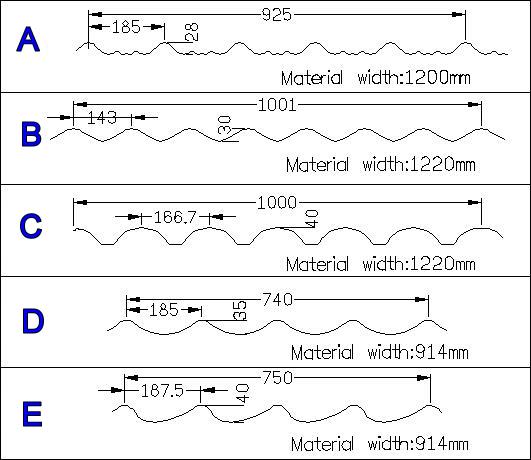

Profile:

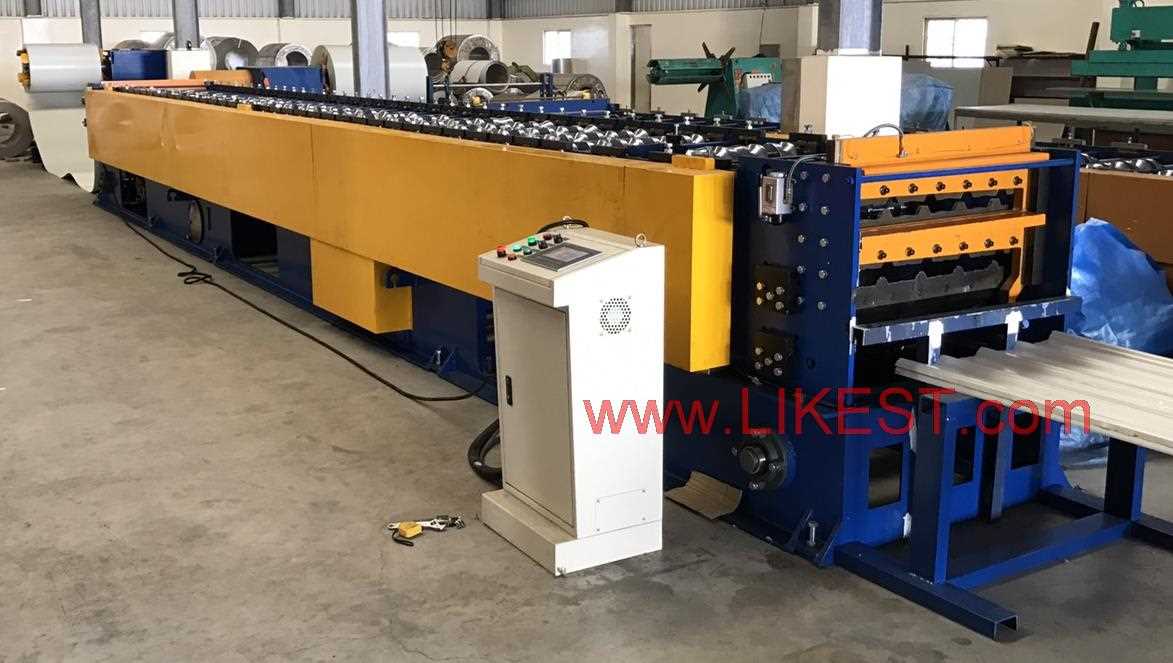

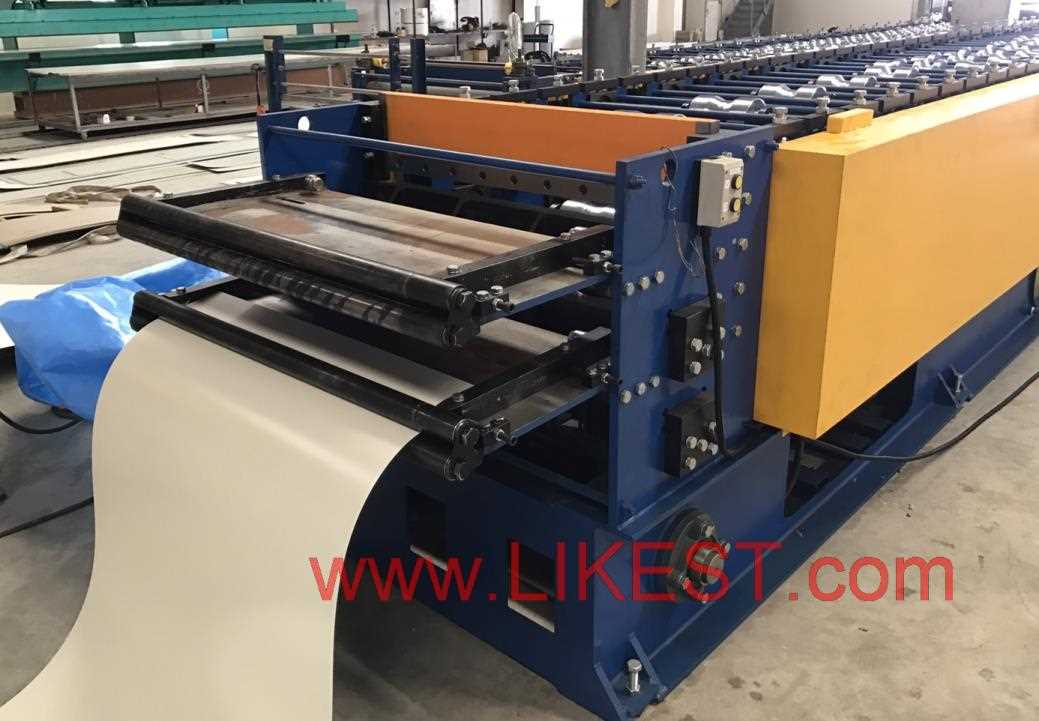

Double layer roofing roll forming machine

Specifications:

²  MATERIAL THICKNESS  :  0.3 ¡ã 0.8 mm

²  MATERIAL WIDTH  :  1220 mm ¡ã 1250 mm

²  FINISHED PRODUCT WIDTH  :  1000 mm¡ã1050 mm

²  One STAND produces one profile at one time.

Forming Process:

Decoiler  è  Roll forming  è  Cut to length after forming  è Run out rack

composition of production line

A. HYDRAULIC DECOILER¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K..¡K.. 1 set

B. FLAT-SHEET CUTTING ¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K...¡K¡K 2 sets

C. ROLL FORMING MACHINE¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K..¡K.. 1 set

D. SPECIAL DESIGN HYDRAULIC CUTTING MACHINE¡K¡K¡K¡K¡K..¡K. 2 sets

E.  SPECIAL DESIGN HYDRAULIC SYSTEM FOR MAIN MACHINE¡K.. 1 set

F.  ELECTRICAL CONTROL PANEL for ROLL FORMING MACHINE¡K.. 1 set

G. PNEUMATIC TYPE RUN OUT RACK¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K. 1 set

¡@
