Maquinas para fabricar metal desplegado:

A Leading Manufacturer in Perforated Metal Machine/Automatic Net Making Machine/

Dual-Bearing NC/CNC Automatic Feeding High Speed Screen Pressing Machine/

Sheet Metal Punching Press Machine/Expanded Metal Making Machine/Expanded Metal/Checkered Plate Machinery

¡@

Description

We offer of Dual-Bearing NC Automatic Feeding High Speed Screen Press, Deep Throat Dual-bearing NC Automatic feeding high speed Screen Press, Straight-Axle Powerful Steel-Made Pneumatic Screen Press.

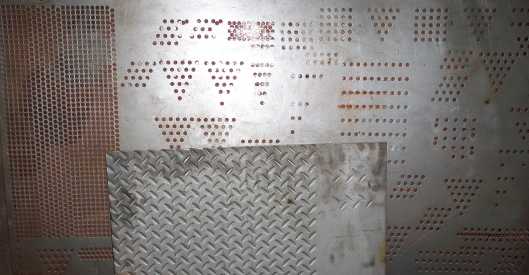

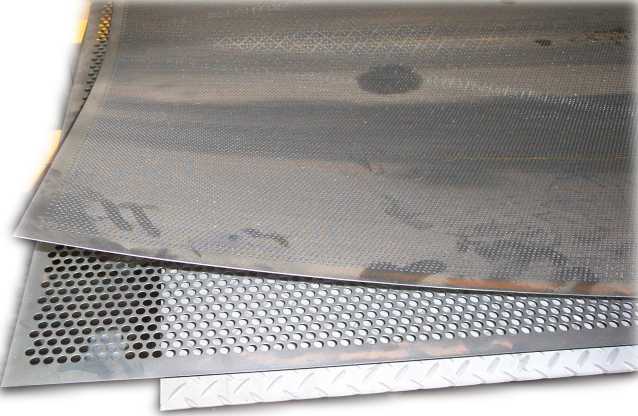

Perforated mesh is a product that has been widely used in various areas, including construction, remodeling, air filter on the ceiling, isolation, kitchen utensils, stereo system and lawn furniture.
as a leading manufacturer in the metal mesh industry, is committed to its customers to produce top quality machinery at a very competitive price. Our machinery can produce the patterns that will meet your requirements, such as round, rectangle, square, etc. (see the following Finished Products.)
Our R&D team has devoted their time and talent to design the machinery that is more efficient.
You can count on our good reputation in this field.

Products:

Dual-Bearing NC Automatic Feeding High Speed Screen Press, Deep Throat Dual-bearing NC Automatic feeding high speed Screen Press, Straight-Axle Powerful Steel-Made Pneumatic Screen Press

¡@

¡@

¡@

Semi-Auto Checkered Plate Production Line/Checkered Plate Min Machine/

Perforated Metal Machine/Fully (Semi) Automatic Net Making Machine/

Deep Throat Dual-Bearing NC-CNC Automatic Feeding High Speed Screen Pressing Machine/

Automotive Production Line With Auto feeding System For Manufacturing Cable Tray Perforated Sheet

Specification :
1. Thickness : 0.4~8.0mm
2. S.P.M : 0~120

Products This machine is suitable for the market which needs various patterns. The easy-changing punch dies can save a lot of time when on changin mould. Also, saving much investment on different moulds, if you required large range on material thickness. The perforated metel m/c is your best choice.

Description:

Fully(Semi)Automatic Net Making Machine / Semi-Automatic Perforated Metal Making Machine (Throat Type) Wind of lathing:1000m/m1220m/m

  1. The body is made by adopting with strong steel plate and is assembled in welding. It can bear great impact after being absorbed by stress. So it will not deformed forever.

  2. Finished Product Size: 4*10 feet

  3. Suitable Material: Stainless Steel, Hot Rolled Black Steel, Aluminum....Special Material is WELCOME.

  4. Minimum Punching Hole Diameter: 0.5mm

  5. The Main Bearing and Connecting Bearing have been coated with PHOSPHOR BRONZE which will increase the wear feature of machine as driving with high speed.

  6. Deep-Throat, Dual-Bearing, Automation.

  7. Punching Ability: 150~200 Ton

  8. Reciprocating operation

  9. Manpower saving

  10. Automatic filling lubrication

  11. Automatic process from feeding to finish products

  12. This machine is suitable for the market which needs various patterns. The easy-changing punch dies can save a lot of time when on changing mould. Also, saving much investment on different moulds, if you required large range on material thickness. The perforated metal machine is your best choice.

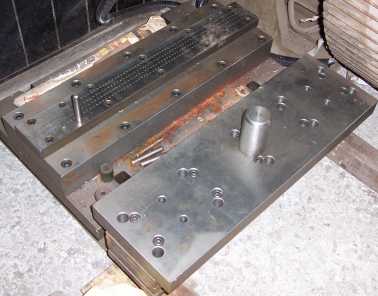

MOLD/TOOLING

¡@

Application:

Spinning, Wearing, Building, Machine, Plywood, Coal Tar,  Electron, Glassware,  Heat Treatment, Leather, Plastic flowers, Earthenware/Pottery/Crockery, Cast Iron, Printing Skill, Nicotine Weed/Tobacco, Rubber, Chemical, Mineral, Paper Industry, Pharmacy, Metal Industry, Ceramics, Bottle Industry,  Cement, Grocery Industry and others.....

Products:

Maquinas para fabricar metal desplegado

¡@

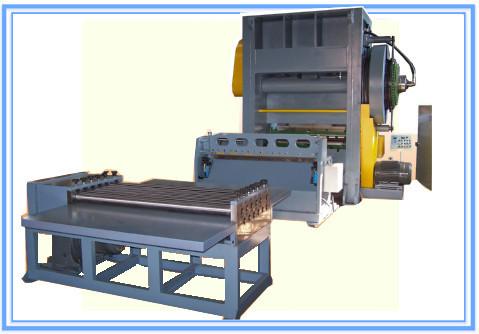

Rhomb Expanding Net Machine (CF-96 & CF60)
Type: Automatic Expanded Metal Making Machine
Description:
Rhomb Expanding Net Machine(CF-96
  • WIND OF LATHING:1220m/m~2440m/m
  • SPM:100~300
  • THICKNESS:8.0mm Max
  • MOTOR:15-30hp
¡@ ¡@
Function:
  • Speaker Net
  • Air/Oil Filler
  • Ornamental Net
  • Emectric fan Net
  • B.B.Q Net
  • Radar Net
  • Security Fence
  • Construction Net
  • Industrial Net
  • Catwalk. others

¡@

 Products

¡@
TYPE
WIDTH
SPM
THICKNESS
SW
MOTOR
CF-012
12"max
800~1000
0.7mm max
4mm max
3hp
CF-024
24"max
500~800
1.0mm max
10mm max
5hp
CF-040
40"max
200~300
1.6mm max
14mm max
7.5hp
CF-048
48"max

100~300
3.0mm max
34mm max
10-20hp
CF-096
96"max
100~300
8.0mm max
40mm max
15-30hp

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

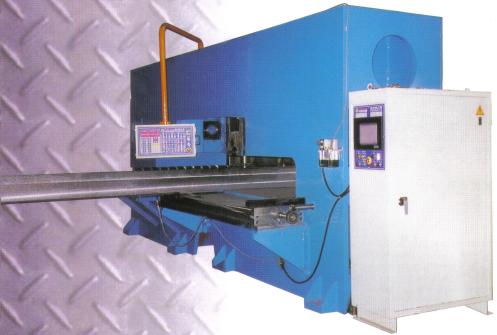

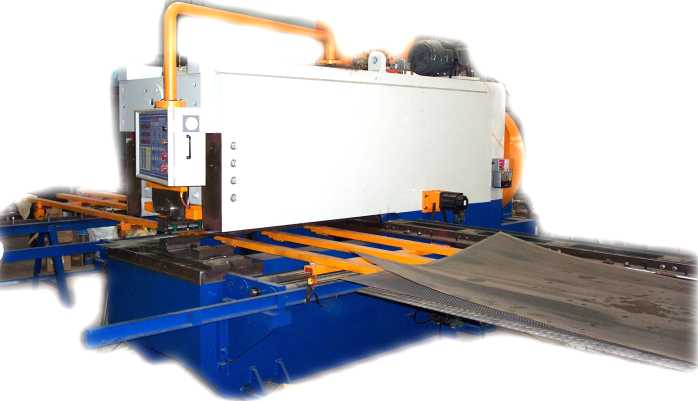

Plano-Type Perforated Metal Machine/Dual-Bearing NC/CNC Automatic Feeding High Speed Scree Pressing Machine

Description:

  1. The body is made by adopting with strong steel plate and is assembled in welding. It can bear great impact after being absorbed by stress. So it will not deformed forever.

  2. Finished Product Size: 5*10 feet

  3. Suitable Material: Stainless Steel, Hot Rolled Black Steel, Aluminum....Special Material is WELCOME.

  4. Minimum Punching Hole Diameter: 0.5mm

  5. The Main Bearing and Connecting Bearing have been coated with PHOSPHOR BRONZE which will increase the wear feature of machine as driving with high speed.

  6. Deep-Throat, Dual-Bearing, Automation.

  7. Punching Ability: 200~500 Ton, MAX FEED:250 STROKES/MINUTE

  8. Reciprocating operation

  9. Manpower saving

  10. Automatic filling lubrication

  11. Automatic process from feeding to finish products

  12. This machine is suitable for the market which needs various patterns. The easy-changing punch dies can save a lot of time when on changing mould. Also, saving much investment on different moulds, if you required large range on material thickness. The perforated metal machine is your best choice.

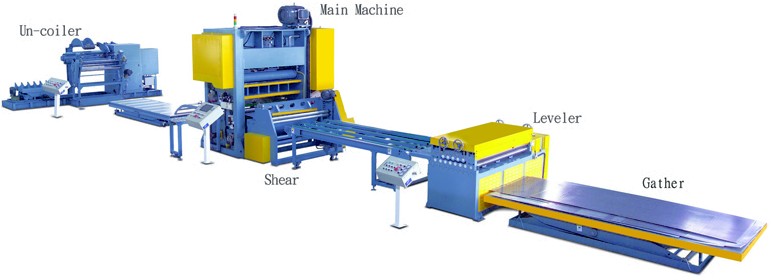

Three machines jointed as one set including Main Unit+Material Feeding Machine+Cutting Machine. High precision, low cost, smaller space occupation, suitable for mass-production purpose rolling, boring and cutting functions

¡@

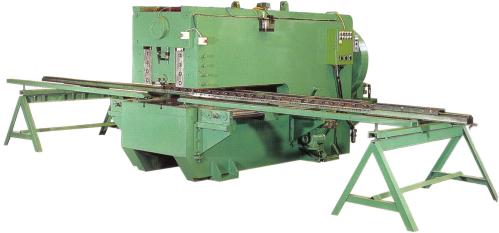

Automatic Perforated Metal Making Machines (Plano Type)
Model: CF-5000 CF-8000 CF-10000 CF-12500 CF-15250

¡@

Description:
Automatic Perforated Metal Making Machines (Plano Type)

Piano-type automatic perforated metal making machine, produce various kinds of machinery of the perforated metal net.

Specification :

1. Steel coil thickness: 0.5~2.0mm Max.
2. Steel coil width: 1,250mm Max.
3. Perforated net hole diameter: Diameter 2.0~10.0mm.
4. Working space required: about 3M X 7M.
5. Applicable material: various kinds of metal sheets.
6. Motor: 20~30Hp.
7. Voltage: 220/380/420.
8. S.P.M: 60~150/Min.
9. Thickness : 0.4~3.0mm
10. S.P.M : 0~200

 Rhombus network

Description:

PS:All specifications can be ordered and made. Welcome to contact with us.

¡@

Wash the hole network

¡@

¡@

¡@

¡@

¡@

¡@

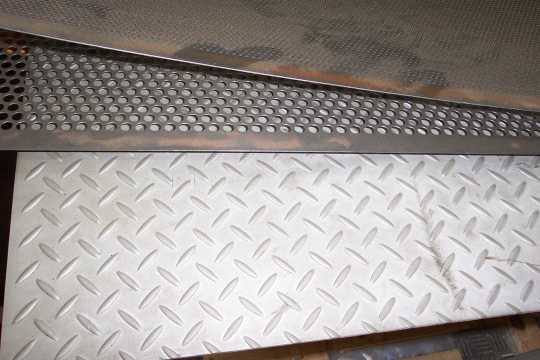

Checkered Plate (5 claws) / Checkered Plate (Rice Pattern)

Description:

TYPE

NUMBER

Specification (m/m)

£X

P

T

EXS

.

Network of Sparkler

KC1

1.0

1.5

0.5

KC2

1.2

1.9

0.5

KC3

1.5

2.0

0.5

KC4

1.6

2.4

0.5

KC5

1.8

2.6

0.5

KC6

2.0

2.6

0.5

KC7

2.0

3.0

0.5

KC8

2.4

3.5

0.5

KC9

3.0

4.5

0.7

KC10

4.0~10.0

6.0~25.0

0.7~3.0

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

PS: All specifications can be ordered and made. Welcome to contact with us.

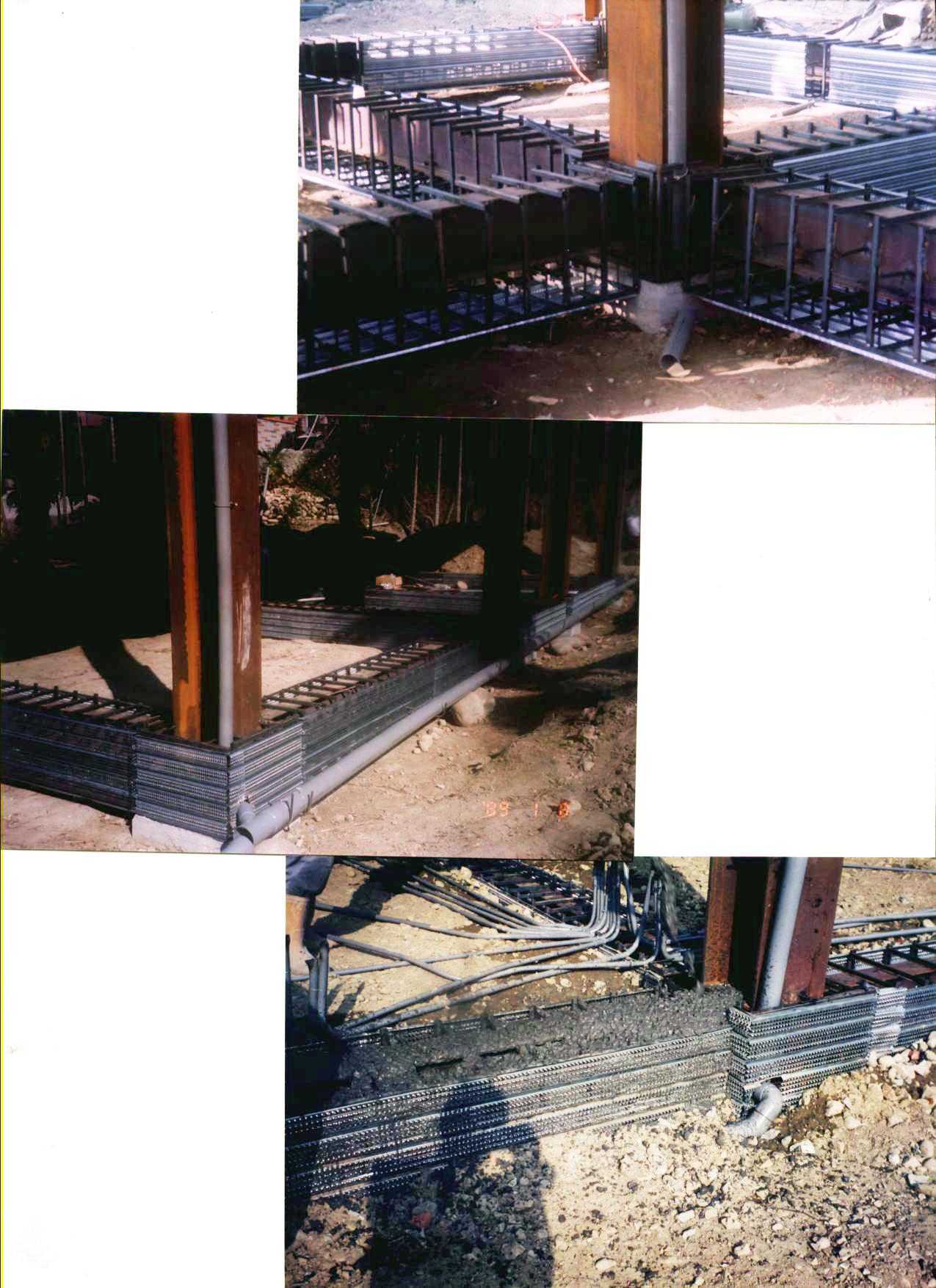

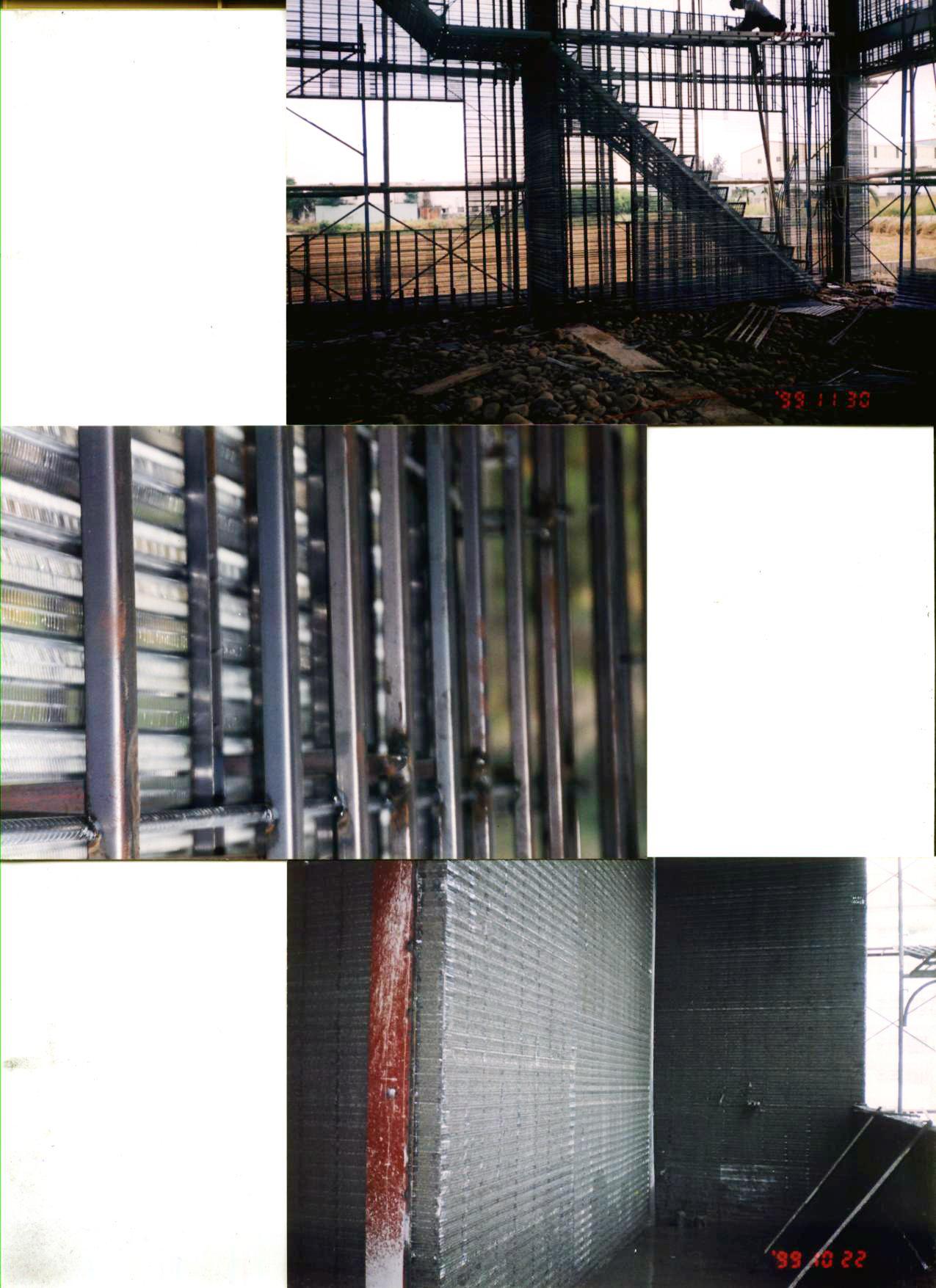

Line / Rib-Lath / Hi Rib-Lath Making Machine           Angle Bead / CORNER BEAD / Plaster Stop Bead Production



PLASTER STOP BEADS 1 PLASTER STOP BEADS 2 PLASTER STOP BEADS 3 PLASTER STOP BEADS 4
PLASTER STOP BEADS 5 PLASTER STOP BEADS 6 PLASTER STOP BEADS 7 PLASTER STOP BEADS 8

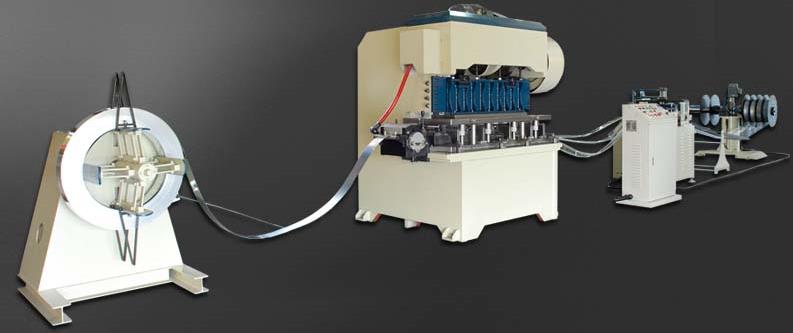

Metal Mesh Forming Making Machine

¡@

Cable Tray Swaging Making Forming Machine

Description:

¡@

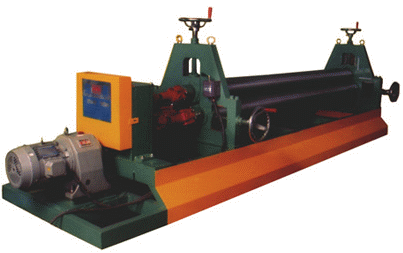

3-Leveller / Leveling Machine

  • WIDTH : 96" WIND OF LATHING : 2440mm Max

  • Application: Levels off the end product either (or end product)
    flatness puts in order the raw material to wants the radian

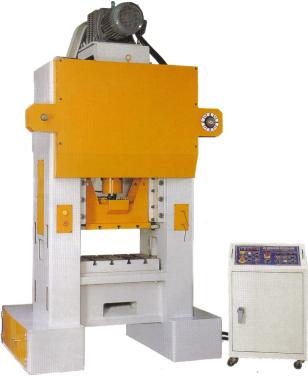

Straight-Axle Powerful Steel-Made Pneumatic Screen Press

¡@

Description:

  1. The body is made by adopting with strong steel plate and is assembled in welding. It can bear great impact after being absorbed by stress. So it will not deformed forever.

  2. Suitable Material: Stainless Steel, Hot Rolled Black Steel, Aluminum....Special Material is WELCOME.

  3. Minimum Punching Hole Diameter: 0.5mm

  4. The Main Bearing and Connecting Bearing have been coated with PHOSPHOR BRONZE which will increase the wear feature of machine as driving with high speed.

  5. This machine can be designed with Auto or Semi-Auto type upon customer's different requirements. It's operation may be processed by adopting with Pedal Brake Electronic Switch. Easy and Comfortable.

  6. The stroke is rapid. The main Motor can be applied with Transmission Motor (Variable Speed Motor) so as to promote the output and reduce the loss of the mold.

  7. We are specialized in making products with various specifications upon your request so as to meet requirements of various works.

Model

DEEP 100

DEEP 120

DEEP 130

DEEP 150

DEEP 200

Punching Ability (Ton)

100T

120T

130T

150T

200T

Stroke

45

50

50

55

55

Stroke/minute

120

120

110

100

90

Max. Working Height

210

230

230

250

250

Slide Bore

50

50

50

50

50

Slide Q'ty Adjustment

50

Platform Area

455*950

455*1100

455*1120

455*1120

500*1250

Opening

200*1325

200*1325

200*1485

200*1540

200*1540

Variable Speed Motor (HP)

10

15

15

15

20

Weight (kg)

13200

18500

21000

24000

27000

¡@

Super Pneumatic Plastic Leather Punching Machine

Description:

  1. Plano-Type, High Speed

  2. Can feed with Frame Wider

  3. The largest width up to 6feet

Portal Type Pneumatic High Speed Pressing Machine

Description:

  1. Straight-Arm Steel-Structure Mechanism: Design of the machine will prevent the product's pressing areas deformation happened when pressing , which can further ensure a quality accuracy.

  2. Guide Passage, New Design: Slide Plate of the machine is made of specific precise copper casting. In addition to 8-direction of guide passage, which is specially good in abrasion resistance.

  3. Slide Adjusting System: The height adjusting mechanism is digital sight, the loss devise is made with hydraulic air system. Easy operation and excellent efficiency.

  4. Mechanical Template Blocking Device: If any template blocking happened while pressing, the mechanism can quickly and efficiently act trouble shooting for user.

  5. Motor Speed Adjustment System: Speed System of the machine is made in a converter design. High efficiency and can further save energy.

  6. Oiling System: The oil ways of the machine is designed as return-type circulation oil.

Metal Wire Mesh Making Machinery    Auto Chain Link Fencing Machine / Hexagonal Wire Netting Machine (Reverse Twist) / Hexagonal Wire Netting Producing Line (Gabion Weaving Machine & Equipments) / High Speed Barbed Wire Machine / Wire Mesh Welding Machine

¡@

¡@
